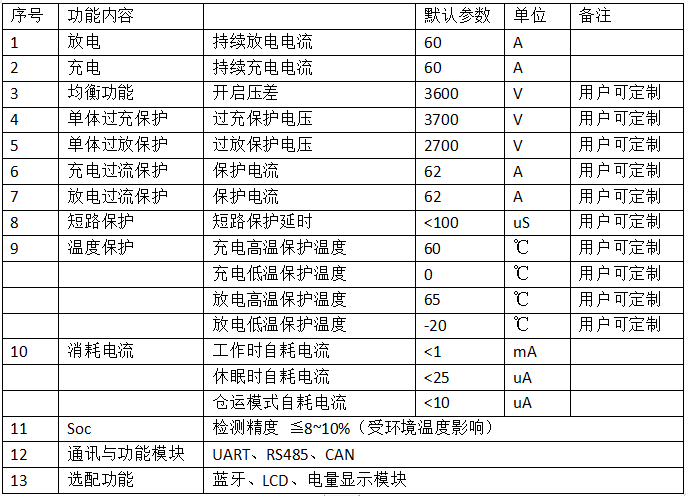

BEBMS-16S60A


residential energy storage Battery management system(BMS) with high quality for solar energy storage system, UPS, hvac system 48V,16S,200A
支持串数: 16 String
电池类型: Lithium manganese, lithium ternary, lithium cobalt, lithium iron
支持电流 : 60A
是否均衡: Yes
尺寸: 150*102*10/16mm

Details

Description:

● S16N60BA is one model battery management system(BMS) with 4 NTC temperature sensors for dual core management and control protection, accurate data for battery health care management.
● can be configured through the licensed software, which enables the battery integrator to create a unique battery design and tailor it specifically for their needs. ● Technical description

Cells management:

● Possibility to connect in series several BMS in order to manage a battery pack for application requirements
● Management of 16 lithium cells in series compatible with all cell technologies
● Measurements accuracy:

Cell voltages: +/- 5 mV
Temperatures: +/- 1°C

● Management of 4 NTC temperature sensors

2 digital measurements used by the software
2 analogic measurements used by the hardware redundancy

Protection:

● Hardware redundancy for voltage and temperature measurements in order to reach a high level of safety.
● Overcharge and undercharge, tunable by software.
● Overtemperature and undertemperature, tunable by software.
● Overcurrent: 2 levels in discharge, 1 level in discharge tunable by software.
● Short circuit hardware protection (resettable electronic fuse).

Balancing:

● Passive balancing with a 150 mA bypass current per cell (on the BMS)

Smart functions:

● SOC and SOH calculation
● Advanced self-diagnostic of the board
● Communication by CAN bus 2.0B
● Advanced supervision software
● Possibility to reprogram the firmware by CAN Bus

Charger management by CAN bus

Power supply/consumption:

Supply of the BMS directly on the battery pack
Low consumption in sleep mode: < 500 μA

Mechanical format:

● 223 mm x 180 mm x 12 mm
